HS-DV01



Item No
HS-DV01
Guage
30/28/26/24AWG
Product
DVI to VGA cable
OD
5.5/6.0/7.3/8.0mm
Type
male to male
Ferrite core
Optional
Connector
24K gold plated or nickel plated
Length
Up to 65ft ( Up to 20m)


Insulation
HDPE
Pin

3+2/4/6/8

Shielding
Aluminum foil and Braiding
Compliance
CE,FCC,ROHS,REACH
Color
Black (customized)
Package
Polybag,Zip bag,OPP bag, bag with paper card, gift box, blister or Customized
Jacket
PVC, with or without Nylon net ,can be customized
Compatibility
DVI TO VGA cable Support VGA/SVGA/WSVGA/XGA/WXGA with VGA supported monitor
Supports 4.95Gbps bandwith, with Analog compliant


QC
100% open and short test
Voltage
DC300V 5M ohm/10ms
Insulation Resistance
10M ohm min
Contact Resistance
3 max
Working Temperature
-25C-80C

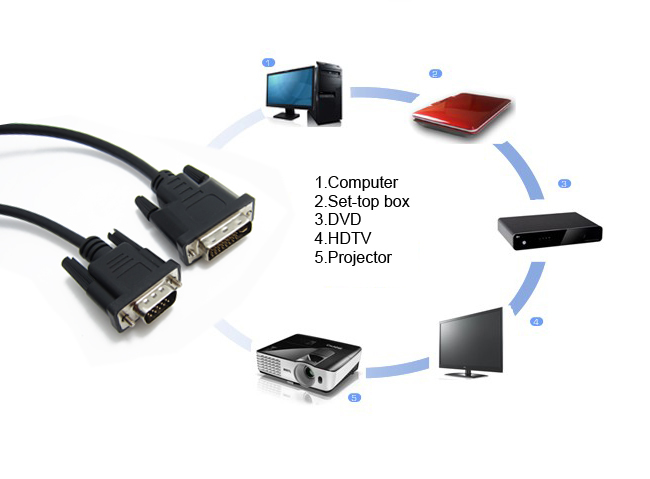

 It widely used in connects PC or laptop to multiple projectors,LCD monitors,and other video display systems, and  so on.
